Dom ProduktyMCH Ceramic Heater

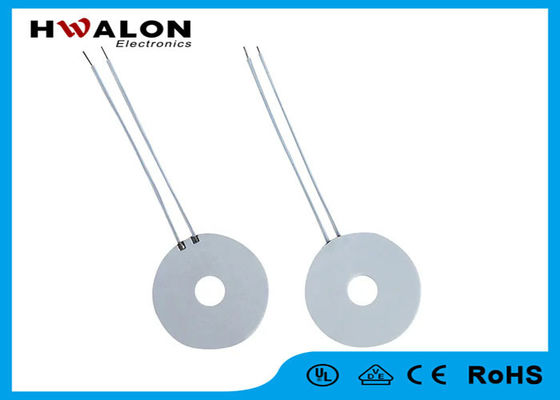

MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up

MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up

  • MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up
  • MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up
MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HWALON
Orzecznictwo: ROHS,CE
Model Number: round MCH
Zapłata:
Minimum Order Quantity: 500pcs
Cena: 0.8-1.2usd/pcs
Packaging Details: cartons
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/week
Kontakt
Szczegółowy opis produktu
Material: Alumina Ceramic Moulding Color: White/Ivory
Voltage: 3.7V-240V Application field: Soldering Iron, Oxygen Sensor, Vaporizer, Other Heating Instruments
Shape: Rectangular, Round, Tube Size: Customized

MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustion, Coffee Machine, Car Water Heatet Up



Design Structure:



Ceramic Heaters are manufactured by printing resistors on alumina sheets,being laminated and sintered into one pieces.



Types:

■ Rectangular alumina ceramic heating element

■ Round shape alumina ceramic heating element

■ Rod shape alumina ceramic heating element

■Tube shape alumina ceramic heating element













Dimension

OD7*T0.6 Resistance range(Ω): 0.4-0.6
  OD11*T0.8 Resistance range(Ω): 0.3-0.4
  OD24*T1.2 Resistance range(Ω): 3.7-4.5/10-13/16-22/9-11/11.3-13.7
  OD20*T1.2 Resistance range(Ω): 17-20/7.5-8.8/1.5-2.0
  OD14*T1.2 Resistance range(Ω): 95-101/70-84/110-145/200-290/140-170/25.5-30.5/25-33/270-330/100-120
  OD30*T1.2 Resistance range(Ω): 1.4-1.69/0.8-1.1/12-16/4-5/1.7-2.1/2.53-2.77/2.0-2.53/2.5-2.8
  OD38*T1.2 Resistance range(Ω): 2.0-2.59/450-550/2.5-3.2/5-6/2.6-3.2
Rated Voltage 5V, 12V, 24V ( all can be customized )
Application Moxibustion, Coffee Machine, Car Water Heatet Up ... ...



MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up 0



Configuration and Dimensions:



MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustio, Coffee Machine, Car Water Heatet Up 1



Design Diameter/Length/Width Tolerance Thickness
Tube/Rod D:2.5~12 L:10~120 D: Above 8mm±0.3mm, Below8mm±0.2mm L:Above80±2.0mm Below80mm±1.0mm
Plate:Square L: 10~100 W: 5-50 Above:70 ±2mm
Below:70±1mm
0.5~2
Plate:Round D:10~70 Above:30 ±2mm
Below:30±1mm
0.5~2



Advantage:



* Compact, Lightweight and Energy Efficient

■ High watt density, good thermal efficiency

■ Multiple heating elements per unit is available

■ Withstand high temperature



* Superior Thermal Properties

■ Rapid Heat Increase

■ Excellent thermal conductivity and thermal compensation rate.

■ Custom designed temperature distribution available

■ High levels of insulation allow direct contact with water,

kerosene and metal and water



* Environmental Qualities

■ lectric noise

■ ergy-saving due to the superior thermal efficiency

■High cost performance



* High Reliability

■ Superior dielectric strength and electrical insulation

■ Longer life Circle due to oxidation-proof design

■ Superior chemical resistance, corrosion-resistance



FAQ:



Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.



Q: Can you customize different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.



Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: 100% in advance.
